Browning X-Bolt 20 MOA Picatinny Rail

Note:

The Magnum rail is for magnum length actions. Current calibers in the magnum length action are .300 PRC, .300 RUM, & .375 H&H. The Super-Short Action is for the .223 Rem, .22-250 Rem, .223 WSSM & .243 WSSM

Talley Manufacturing’s Browning X-Bolt Picatinny Rails are machined entirely from high grade alloy and protected with a hard-coat anodizing to 65 Rockwell ensuring the craftsmanship of these Picatinny Rails last the lifetime of your firearm. The Browning X-Bolt Picatinny Rails are all designed and manufactured with precision to fit your firearm with the industry’s tightest manufacturing tolerances. Talley’s Browning X-Bolt Pic Rails provide a mounting platform for all optics mounts that have been designed in accordance with the MIL-STD-1913 Pic Rail specifications, to include all Talley Picatinny scope mounts.

Browning X-Bolt Picatinny Rail – Product Dimensions and Weights

Action	Rear Height (20MOA)¹	Hole² 1 ↔ 2	Hole 2 ↔ 3	Hole 3 ↔ 4	Front Height (20MOA)¹	Overall Length	Weight
Super-Short Action	.500″ (.539″)	.700″	2.825″	.700″	.425″ (.435″)	5.761″	1.9oz.
Short Action	.500″ (.537″)	.700″	2.942″	.700″	.425″ (.437″)	6.155″	2.2oz.
Long Action	.500″ (.537″)	.700″	3.694″	.700″	.425″ (.433″)	6.863″	2.4oz.
Magnum Action	.500″ (.539″)	.700″	3.930″	.700″	.425″ (.433″)	6.965″	2.3oz.

¹ The height is measured at hole 1 and hole 4 ; from the top of the action to the top of the rail.

² Hole 1 is closest to the shooter and hole 4 is closest to the muzzle. Picatinny Rail hole spacing measured center to center.

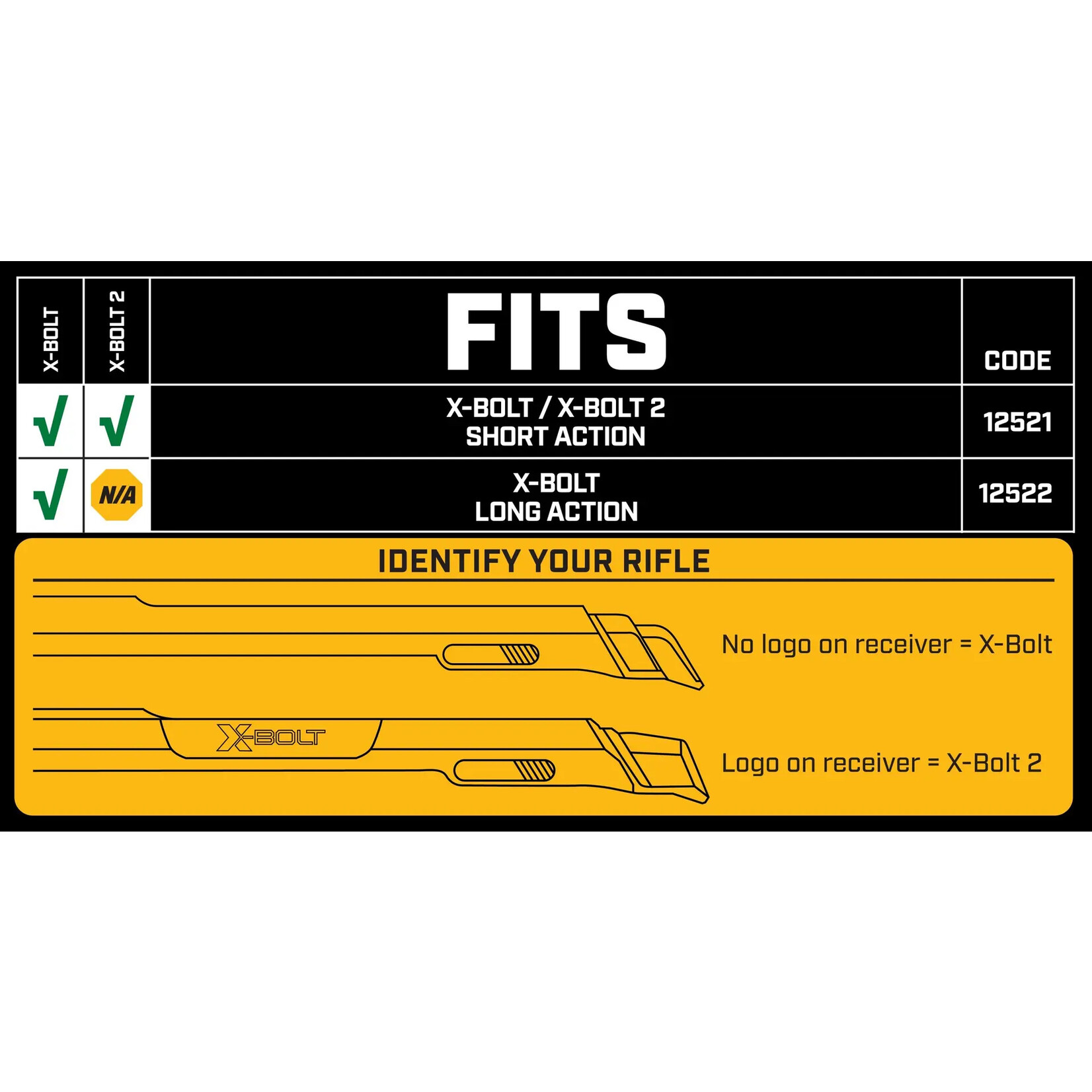

How to identify X-Bolt 1 or X-Bolt 2:

The newer X-Bolt 2 can be identified by the X-Bolt logo on the left hand side of the action. The original X-Bolt doe not have this logo

X-Bolt 1:

X-Bolt 2:

Torque Recommendations?

Browning X-Bolt Picatinny Rail to Action: Torque can depend on the receiver. Please check with the rifle manufacturer (Browning) to verify allowable torque into receiver. Always make sure your torque wrench is calibrated, Talley Mfg is not responsible for damage caused to firearms due to over torquing.

PLEASE REFER TO TALLEY'S WEBSITE TO FIND THE CORRECT RAIL FOR YOUR FIREARM:

https://www.talleymanufacturing.com/product-category/picatinny-rails/
