When success rides on the perfect shot, rely on the exceptional versatility and optical performance of Viper® HD. From big game to predators, there’s a proven model for every hunting application. Each member of the Viper® HD family delivers outstanding image clarity, resolution, and sharpness to ensure your target comes into view with sharp detail. Viper® HD also boasts enhanced features for unmatched accuracy at extended ranges while also excelling in the low light of dawn and dusk when game is most active.

Reticle

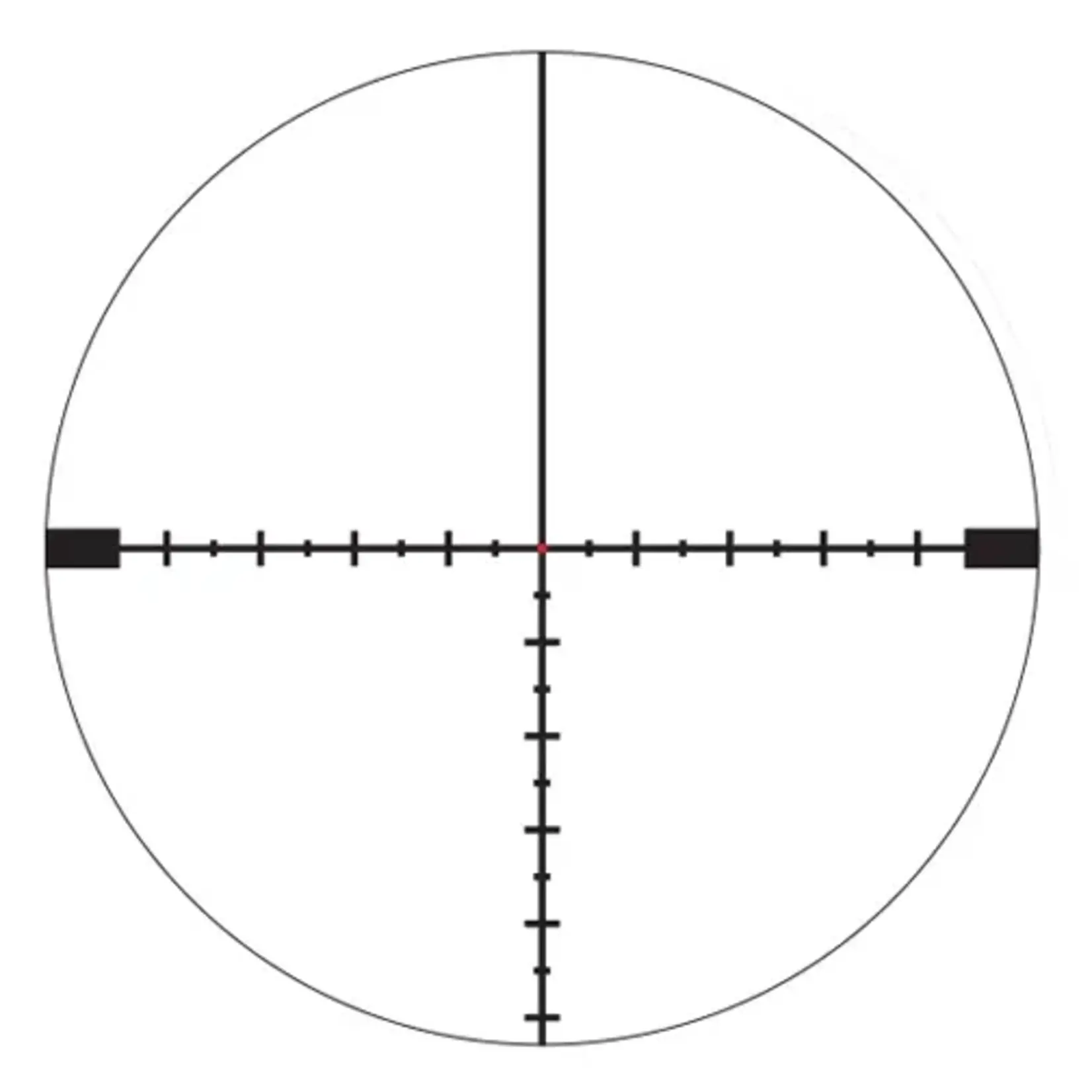

VMR-3 (MOA)

Designed to maximize long-distance shooting and ranging abilities, the VMR-3 reticle can be used to effectively determine ranges, holdovers, windage corrections, and moving target leads. The fine center crosshair subtensions on the VMR-3 reticle were carefully chosen to provide the optimum balance between precision aiming and low-light visibility.

Specifications

Magnification	5-25x
Objective Lens Diameter	50 mm
Focal Plane	Second Focal Plane
Reticle	VMR-3 (MOA)
Turret Style	Exposed Elevation Capped Windage
Tube Size	30 mm
Adjustment Graduation	1/4 MOA
Parallax Setting	20 yds. - ∞
Max Windage Adjustment	42 MOA
Max Elevation Adjustment	68 MOA
Travel Per Rotation	25 MOA
Total Elevation Adjustment w/ RevStop® installed	47 MOA
Field of View	24.0' - 4.7'
Eye Relief	3.4"
Length	15.2"
Weight	25.0 oz

Lengths
L1	L2	L3	L4	L5	L6
15.2"	2.1"	1.8"	5.5"	6.3"	3.4"



Heights
H1	H2
2.3"	1.7"
